High-Pressure Vortex Blowers: Efficient, Maintenance-Free Solutions for Industry

Technical Analysis and Applications of Vortex Blowers

A vortex blower, also known as a regenerative blower or high-pressure vortex air pump, is an efficient gas compression device based on centrifugal force principles. Its core working component is a multi-blade impeller. When the impeller rotates at high speed, air is forced outward by centrifugal force and subsequently circulates and accelerates within the annular cavity, forming a spiral-shaped high-pressure airflow. This unique working principle allows it to generate pressure 12–17 times higher than centrifugal fans of the same size, while also offering low noise and maintenance-free operation.

Operating Principle

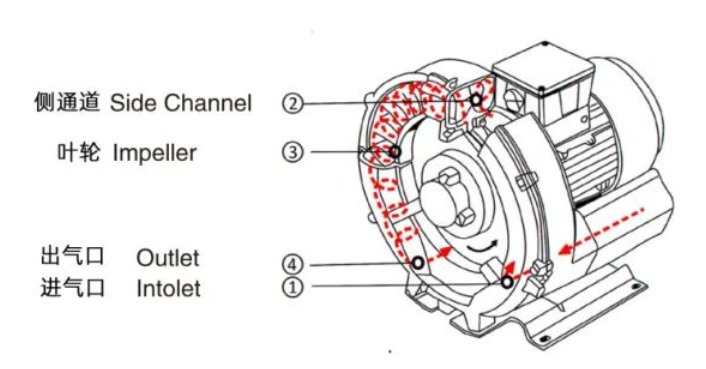

The impellers are mounted directly on the motor shaft for noncontact compression entirely without friction.Maximum operational reliabity, evenat high differential is ensured by the arrangement of the bearings outside the compression chamber.The gas it taken in though the inlet1.As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotaion.centriftugal force in the impeler blades accelerates the gas outward and the pressure increase .Every rotation adds kinetic energy.Resulting in the further increase of the pressure along the side channel .The side channel narrow at the rotor,sweeping the gas off the impelerblades and discharaing it thouah the outlet silencer 4 where it exits the side channel blower.

Structure and Performance Features Operating Principle
Vortex blowers feature an integrated aluminum alloy structure and a direct-drive design connecting the impeller to the motor, significantly reducing mechanical wear and extending service life. In terms of technical parameters, the impeller diameter and rated power can be flexibly adjusted based on application requirements, with maximum air pressure reaching up to 100 kPa. They support 24/7 continuous operation and are ideal for high-cleanliness environments due to their dual-functionality (both blowing and suction) and oil-free operation.

Applications
These devices demonstrate exceptional adaptability across various industries:

• Industrial Manufacturing: Paper positioning in printing machinery, electroplating tank fluid mixing, welding fume extraction.
• Environmental Engineering: Wastewater treatment aeration, industrial exhaust gas processing.
• Civilian Use: Oxygenation in aquaculture, gas transportation in food packaging.
• Emerging Applications: Laser equipment cooling, powder conveying in 3D printing.

As a critical component in industrial fluid control, vortex blowers continue to drive technological advancements in smart manufacturing and green production. Their compact design (smallest models are palm-sized) and strong environmental adaptability (stable operation in temperatures from -20°C to 80°C) make them a versatile and reliable solution for modern industrial needs.
