Premium BTSR Series Three-Lobe Roots Blower
Engineered for continuous, heavy-duty industrial applications, the BTSR series by Jinan Golden Bridge redefines stability in positive displacement blowers. By utilizing an advanced three-lobe rotor design and a unique spiral port structure, it significantly minimizes gas pulsation, resulting in vibration-free and ultra-low noise operation.
100% Oil-Free Air: Specialized structural sealing prevents lubricating oil from entering the casing, ensuring output air is completely clean.
Ultra-Low Noise: The spiral inlet and outlet ports allow gradual airflow, eliminating the drastic pressure changes that cause traditional blower noise.
Exceptional Durability: Features 20CrMnTi carburized gears ground to Grade 5 precision, supported by high-capacity imported double-row roller bearings.
Zero Vibration: Precision-machined rotors undergo rigorous dynamic balancing tests for perfectly smooth performance.
The BTSR Series Roots Blower represents our commitment to high-efficiency, low-carbon, and precision-engineered industrial solutions. Designed for reliability, this positive displacement blower delivers an airflow volume that is strictly proportional to its rotational speed. Compared to traditional two-lobe models, our three-lobe configuration completes three intake and exhaust cycles per rotation, ensuring smaller load variations and higher mechanical strength.
Optimized Spiral Port Design: Old-generation blowers suffer from severe noise due to sudden reverse flow and compression at the exhaust port. The BTSR series incorporates a spiral shielding line, ensuring the rotors open and close sequentially. This gradual compression eliminates drastic pressure spikes, drastically reducing operational noise.
Advanced Composite Meshing: The rotor profiles are designed with an advanced composite meshing curve, offering superior sealing, minimal air leakage, and a significant boost in volumetric efficiency.
Standardized Interchangeability: We employ a complete mass production system. All fan bodies and accessories are standardized, guaranteeing rapid replacement, easy maintenance, and consistent high quality.

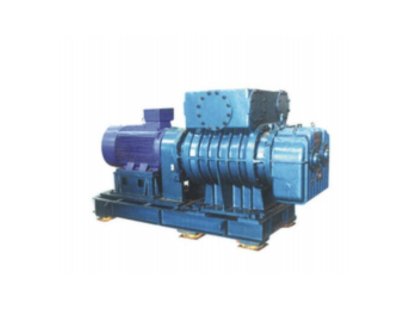

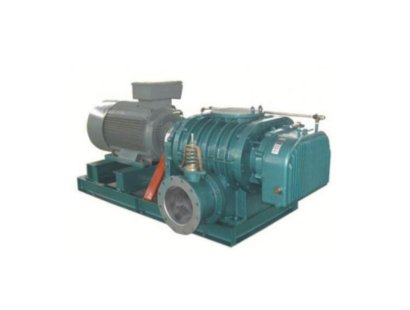

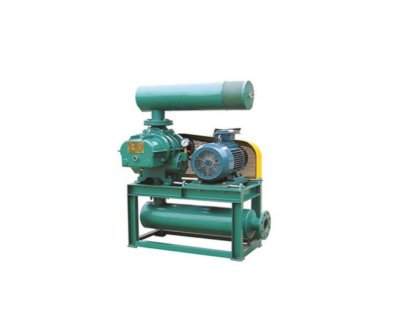

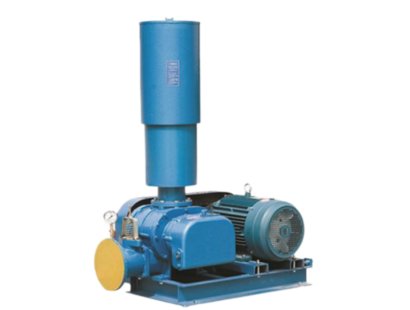

(The BTSR series covers standard, high-pressure, and compact configurations to meet diverse needs. Contact us for detailed performance curves.)
| Technical Parameter (技术指标) | Performance Range (性能范围) |
| Caliber / Diameter (设备口径) | DN50 – DN350 |
| Air Flow Capacity (排气流量) | 0.54 m³/min – 191 m³/min |
| Working Pressure (工作压力) | 9.8 kPa – 98.0 kPa (0.1 - 1.0 kgf/cm²) |
| Motor Power (适配电机功率) | 0.55 kW – 400 kW |
| Drive Type (传动方式) | Belt Drive (皮带传动) / Direct Drive (直联传动) |
The BTSR series is widely adopted as the core power source in demanding sectors:
Environmental Engineering: Wastewater treatment aeration and power plant desulfurization.
Pneumatic Conveying: Transporting cement, flour, chemical fertilizers, and bulk materials.
Industrial Processing: Steel smelting, casting, sandblasting, and vacuum adsorption.
Aquaculture: High-density oxygen supply for aquatic farming.
We stand behind the quality of our equipment. Our dedicated international export team provides comprehensive support, from technical sizing to global logistics. Whether you require a standard bare shaft or a customized Roots blower system tailored to your specific voltage and working environment, we ensure rigorous quality control before shipment. For our authorized distributors globally, we provide priority technical support and reliable supply of maintenance spare parts.
