The 2SK series is engineered for industrial applications requiring deeper vacuum levels and high-speed performance
Core Performance:
Deeper Vacuum: Achieves significantly higher vacuum than single-stage models
2SK-P1 Jet Unit: Can be paired with an atmospheric jet pump to reach even higher vacuum levels
High Efficiency: Large pumping speeds maintained even in high vacuum regions
Robust Build: Compact structure with easy maintenance for long-term operation
The 2SK Series two-stage water ring vacuum pumps, manufactured by Jinan Golden Bridge Precision Machinery Co., Ltd, are designed to draw in air and other non-corrosive, water-insoluble gases
Thanks to its high vacuum stability, the 2SK series is widely utilized in
Pharmaceutical & Chemical: Vacuum distillation, evaporation, and solvent recovery.
Food & Beverage: Vacuum concentration and dehydration.
Metallurgy & Electronics: Vacuum smelting and impregnation processes.
Textile Industry: Vacuum drying and rehumidification.
Note: Performance indicators are obtained under standard conditions: Atmospheric pressure 60mmHg, water temperature 15℃, and air temperature 20℃
| MODEL | Air Flow (m³/min) | Ultimate vacuum Mpa (mmHg) | Motor Power (KW) | Speed (r/min) | Water Consumption (L/min) | Inlet Port (mm) | Outlet Port (mm) | |
| Max | Vacuum -700mmHg | |||||||
| 2SK-0.4 | 0.4 | 0.25 | -0.096 (-720) | 2.2 | 2860 | 3-5 | G1" | G1" |
| 2SK-0.8 | 0.8 | 0.5 | 3 | 2860 | 5-8 | G1" | G1" | |
| 2SK-1.5 | 1.5 | 0.9 | -0.097 (-730) | 4 | 1440 | 10-15 | 40 | 40 |
| 2SK-3 | 3 | 2 | -0.098 (-735) | 7.5 | 1450 | 15-20 | 40 | 40 |
| 2SK-6 | 6 | 4 | 15 | 1460 | 25-35 | 70 | 70 | |
| 2SK-12 | 12 | 8 | 22 | 970 | 40-50 | 100 | 100 | |
| 2SK-20 | 20 | 14 | 45 | 740 | 60-80 | 125 | 125 | |
| 2SK-30 | 30 | 20 | 55 | 740 | 70-90 | 125 | 125 | |

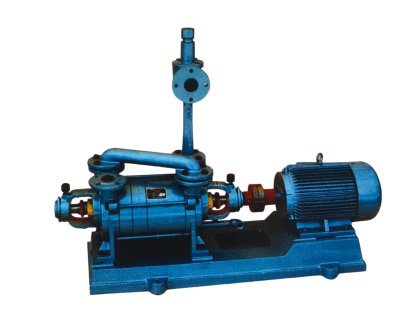

Two-stage water ring vacuum pump with one-stage atmospheric pump
2SK Series Two-stage Water Ring Vacuum Pump Main Technical Specifications
| MODEL | Air Flow (m³/min) | Ultimate vacuum MPa (mmHg) | Motor Power (KW) | Speed (r/min) | Water Consumption (L/min) | |
| Suction Pressure 30 Torr (-730mmHg) | Suction Pressure 20 Torr (-740mmHg) | |||||
| 2SK-0.4P₁ | 0.28 | 0.24 | -0.099 (-750) | 2.2 | 2860 | 3-5 |
| 2SK-0.8P₁ | 0.56 | 0.48 | 3 | 2880 | 5-8 | |
| 2SK-1.5P₁ | 1.05 | 0.9 | 4 | 1440 | 10-15 | |
| 2SK-3P₁ | 2.1 | 1.8 | 7.5 | 1440 | 15-20 | |
| 2SK-6P₁ | 4.2 | 3.6 | 15 | 1460 | 25-35 | |
| 2SK-12P₁ | 8.4 | 7.2 | 22 | 970 | 40-50 | |
| 2SK-20P₁ | 14 | 12 | 45 | 740 | 60-80 | |
| 2SK-30P₁ | 21 | 18 | 55 | 740 | 70-90 | |
Versatile Industrial Applications of 2SK Water Ring Vacuum Pumps
