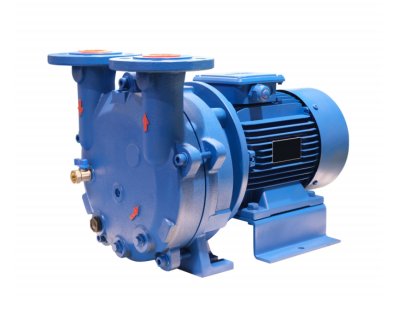

High-Efficiency 2BV Series Water Ring Vacuum Pump
The 2BV series is a compact, coaxial single-stage water ring vacuum pump engineered for reliable, oil-free, and safe operation. It is highly effective for pumping moist air and steam across chemical, food, and manufacturing industries.
Core Specifications:
Ultimate Pressure: 33mbar (3300pa)
Max. Capacity: 27 - 500 m³/h
Noise Level: Ultra-quiet operation, as low as 62 decibels
Sealing: Premium mechanical seals to eliminate leakage
Product OverviewThe 2BV series water ring vacuum pump is designed with an overall structure of a coaxial single-stage pump. It is highly suitable for pumping moist air and steam, capable of achieving a minimum suction pressure of up to 33mbar (3300pa). With its oil-free and safe operation, it is a reliable choice for various demanding industrial environments.
Key Features & Benefits
Compact & Space-Saving: The direct connection of the motor and pump with the same shaft saves valuable installation space.
Maintenance-Free & Oil-Free: Adopting mechanical seals as standard equipment eliminates leakage and makes maintenance incredibly convenient.
Ultra-Quiet Operation: Engineered for stable working, significantly reducing operational noise down to a remarkably low 62 decibel.
Optimized Efficiency: Features a unique design of a flexible discharge port that prevents over-compression.
Built-in Cavitation Protection: Includes a connection port for a cavitation protection pipe to eliminate cavitation sound and protect the pump under limited pressure.

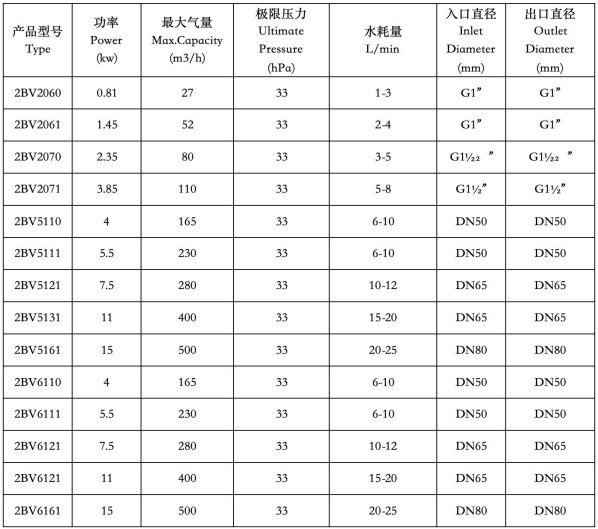

Performance Table
| Type (产品型号) | Power (功率 kw) | Max. Capacity (最大气量 m³/h) | Ultimate Pressure (极限压力 hPa) | Water Consumption (水耗量 L/min) | Inlet Diameter (入口直径) | Outlet Diameter (出口直径) |
| 2BV2060 | 0.81 | 27 | 33 | 1-3 | G1" | G1" |
| 2BV2061 | 1.45 | 52 | 33 | 2-4 | G1" | G1" |
| 2BV2070 | 2.35 | 80 | 33 | 3-5 | G1 1/2" | G1 1/2" |
| 2BV2071 | 3.85 | 110 | 33 | 5-8 | G1 1/2" | G1 1/2" |
| 2BV5110 | 4 | 165 | 33 | 6-10 | DN50 | DN50 |
| 2BV5111 | 5.5 | 230 | 33 | 6-10 | DN50 | DN50 |
| 2BV5121 | 7.5 | 280 | 33 | 10-12 | DN65 | DN65 |
| 2BV5131 | 11 | 400 | 33 | 15-20 | DN65 | DN65 |
| 2BV5161 | 15 | 500 | 33 | 20-25 | DN80 | DN80 |
| 2BV6110 | 4 | 165 | 33 | 6-10 | DN50 | DN50 |
| 2BV6111 | 5.5 | 230 | 33 | 6-10 | DN50 | DN50 |
| 2BV6121 | 7.5 | 280 | 33 | 10-12 | DN65 | DN65 |
| 2BV6131 | 11 | 400 | 33 | 15-20 | DN65 | DN65 |
| 2BV6161 | 15 | 500 | 33 | 20-25 | DN80 | DN80 |

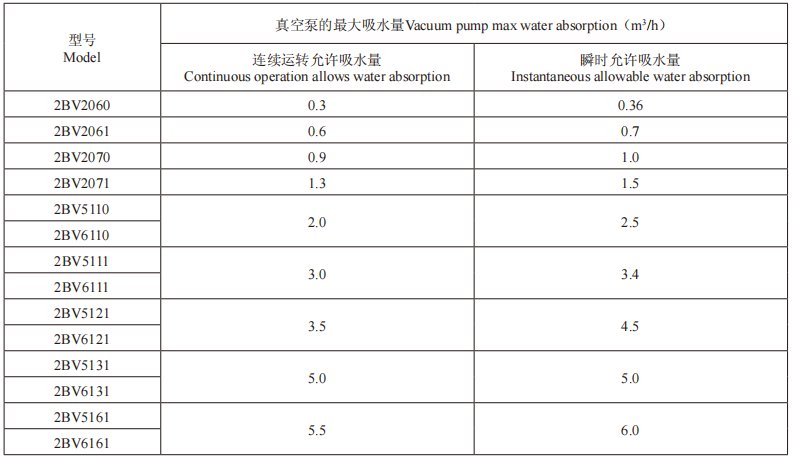

Vacuum pump max water absorption
| Model (型号) | Continuous operation allows water absorption (连续运转允许吸水量 m³/h) | Instantaneous allowable water absorption (瞬时允许吸水量 m³/h) |
| 2BV2060 | 0.3 | 0.36 |
| 2BV2061 | 0.6 | 0.7 |
| 2BV2070 | 0.9 | 1 |
| 2BV2071 | 1.3 | 1.5 |
| 2BV5110 / 2BV6110 | 2 | 2.5 |
| 2BV5111 / 2BV6111 | 3 | 3.4 |
| 2BV5121 / 2BV6121 | 3.5 | 4.5 |
| 2BV5131 / 2BV6131 | 5 | 5 |
| 2BV5161 / 2BV6161 | 5.5 | 6 |
Wide Range of ApplicationsThe versatile 2BV vacuum pump is trusted across multiple industries worldwide:
Chemical & Mining: Vacuum filtering, solvent reclaiming, and extraction.
Manufacturing & Plastics: Extrusion, molding, and drying processes.
Food & Beverage: Vacuum packaging, canning, and liquid degassing.
Application
